TopLight Tunable Laser Source
Tunable Laser Source in O, E, S, C and L spectral bands



TopLight tunable laser source has the characteristics of high wavelength accuracy, fast scanning speed, high output power stability, and no mode hopping in the entire wavelength band : O, E, S, C and L. The product is highly integrated, compact in size, and flexible in control. It is equipped with high-speed power meter and bias meter from Dimension Technology.
TopLight's laser source ensures that the wavelength accuracy of the light source can reach ±20pm by using the principal of external laser cavity. The repeatability and stability of the wavelength remain reliable even during high-speed scanning.
In different test environments. TopLight can also compensate for environmental changes to ensure always has a good signal-to-noise ratio and side mode suppression ratio, providing an excellent system for rigorous wavelength scanning. test environment and conditions.




Figure 1 : TopLight Tunable Laser Source

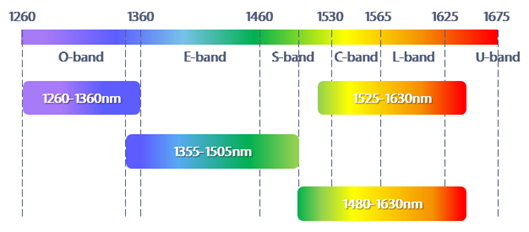

Figure 2 : Available for several spectral ranges : O, C+L, S+C+L and E+S


KEYS FEATURES :


• Wavelength accuracy ±20pm
• Scanning speed up to 100nm/s
• Output Optical Power > 10dBm (range)
• Hight signal to noise ratio (>80dB)
• Mode-hop-free with rapid sweeps
• Wide wavelength tunable range



APPLICATIONS :


• WDM scanning test
• Wavelength dependance test
•Optical characterization of components and modules
•Spectroscopy
• Specific wavelength output
