PSG 2000
High-Speed Polarization State Generator




Luna Innovations’ high-speed polarization state generator (PSG 2000) enables quick generation of up to six distinctive polarization states (LCP, RCP, Linear ±22.5°, Linear ±67.5°) across a Poincaré sphere in less than 50 μs between two consecutive states, with high repeatability of less than 0.1 degree.

PSG 2000 uses a new self-latching PSG 4bit optical head. In addition, its predictable wavelength and temperature dependence allows for easy calibration, making it a perfect choice in swept wavelength component measurement systems. PSG 2000 comes with user interface for manually adjust and automatically sweep selected states from 6 distinctive polarization states.



Figure 1 : MPC-201 Multifunction Polarization Controller

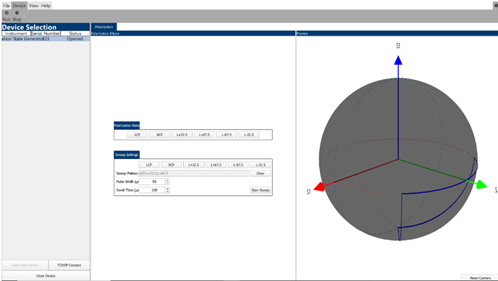

Figure 2 : PSG-2000 Graphic User Interface


KEY FEATURES :


• Switches between 6 polarization states:
LCP, RCP, Linear ±22.5°, Linear ±67.5°
• Typical Switching Time 50 μs
• SOP Repeatability 0.1°
• 4-bit Control
• Continuous control
• USB 2.0, Ethernet 100BASE-TX
• SCIP command, C/C++ API, PC GUI
• Trigger in/out



APPLICATIONS :


• Polarization OTDR
• Polarization Rotation
• Mueller Matrix-based Polarization Analysis
• Swept-Frequency Measurement
• Material Birefringence
• Optical Imaging
